Nigeria - 200KWp solar mini-grids

Project Overview

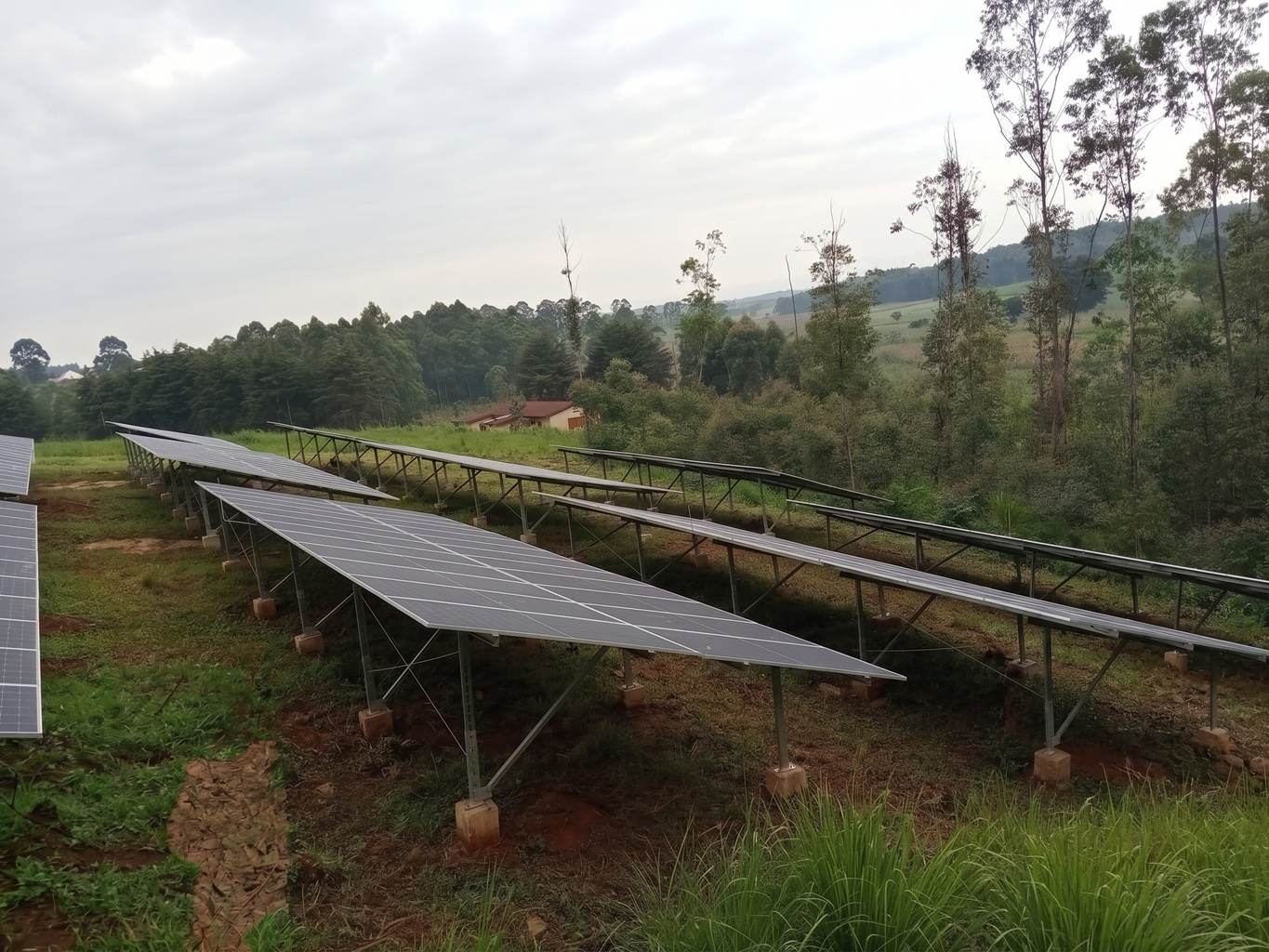

This 200kWp ground-mounted solar mini-grid brings reliable, clean power to a rural community in Nigeria. Built on uneven, sloping terrain, the project bypassed the need for expensive land grading by utilizing a flexible mounting system with height-adjustable telescopic posts. This smart design enabled rapid, cost-effective vertical leveling across the site's natural topography.

The Challenge

• Rugged Terrain: Severe, multi-directional slopes made standard fixed-column mounts structurally unviable.

• High Civil Costs: Remote logistics made traditional land grading and the use of heavy earthmoving machinery cost-prohibitive and too slow.

• Rigid Alignment Needs: The 200kWp system demanded a perfectly consistent tilt angle to maximize solar energy yields, despite the uneven ground.

Our Solution

① Adaptable Terrain Leveling: Telescopic columns offer ±150mm of vertical adjustment, allowing seamless installation on uneven ground without the cost of site excavation.

② Weather-Resistant Foundations: Elevated, cast-in-place concrete piers keep steel connections above ground moisture, preventing corrosion during West Africa's heavy rainy seasons while ensuring robust stability.

③ 25-Year Durability: All main steel components feature tropical-grade Hot-Dip Galvanizing (ISO 1461, ≥65µm thickness) to withstand extreme humidity, rain, and UV exposure.

④ Rapid Modular Deployment: Factory-assembled kits with standardized bolts eliminate on-site welding and cutting. This simplifies remote Nigerian logistics, lowers labor requirements, and speeds up commissioning.

The Result & Impact
